GPSPATRON GNSS Interference Monitoring & Protection

FOCUSTEL, in collaboration with GPSPATRON, provides an advanced GNSS cybersecurity platform for continuous monitoring, detection, classification and investigation of GNSS jamming, spoofing and signal-quality anomalies.

The solution protects GNSS-dependent critical infrastructure, including telecom synchronization systems, data centres, airports, maritime operations, power networks, RTK reference stations, transportation systems and government facilities.

Complete GNSS Cybersecurity Platform

GPSPATRON combines field sensors with the GP-Cloud centralized monitoring platform to provide real-time visibility of GNSS signal quality and interference events. The architecture can be deployed as a cloud service or installed on the customer’s own infrastructure.

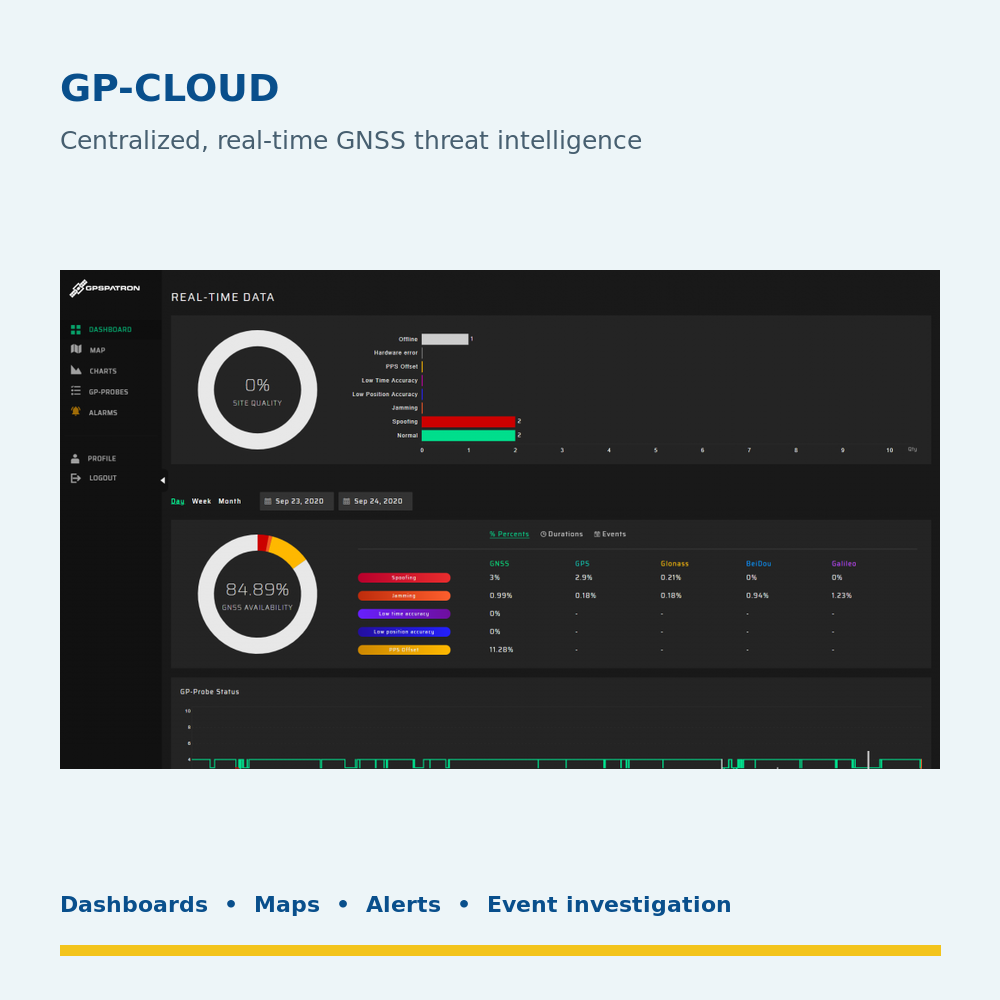

GP-Cloud

• Real-time GNSS signal-quality monitoring
• Detection and classification of jamming, spoofing and anomalies
• Event maps, dashboards, charts and historical analysis
• RF spectrum, spectrogram and PPS-offset monitoring
• Automated alerts by email, webhooks and RabbitMQ
• REST API for integration with existing monitoring systems
• Cloud-based and self-hosted deployment options

GP-Probe TGE2

The GP-Probe TGE2 is a high-performance three-channel GNSS interference detector designed for critical infrastructure and advanced forensic analysis.

• Three RF channels for spatial spoofing analysis
• Detection of sophisticated synchronous and multi-transmitter spoofing
• Embedded 60 MHz real-time RF signal analyser
• Interference classification and TDOA-ready localization
• Raw IQ-data capture for detailed incident investigation
• PPS phase-offset measurement for timing-system supervision
• Optional integration with GP-Blocker

GP-Probe Nano L1

The GP-Probe Nano L1 is a compact wearable GNSS jamming detector and logger for field surveys, patrol operations and interference-source investigation.

• Standalone detector and long-term logger modes
• Audible, vibration and LED interference alerts
• Android GPSPATRON Connect application
• Geotagged field measurements and collaborative mapping
• Optional GP-Cloud synchronization and event sharing

Supported GNSS and Integration

• GPS, GLONASS, Galileo and BeiDou
• GP-Probes and compatible third-party GNSS receivers
• RTCM over NTRIP and NMEA over NTRIP
• Septentrio SBF and other supported receiver formats
• API integration with security, network and spectrum-monitoring platforms

Applications

• Telecom and 4G/5G synchronization protection
• Regulatory GNSS interference monitoring
• Airport and air-navigation infrastructure
• Maritime navigation and port operations
• Power grids, PMUs and wide-area monitoring systems
• RTK and geodetic reference-station integrity
• Data centres and financial timestamping
• Public safety, security and critical transport

FOCUSTEL Services

FOCUSTEL supports solution design, site selection, installation, live demonstrations, proof-of-concept projects, GNSS monitoring campaigns, incident analysis, training and knowledge transfer across the MENA region.
